How to configure the BCT Inspector NX to stamp basic and reference dimensions with AutoCreate.

Configuration Guide:

Here I will show you some hints to automatic balloon Basic Dimensions (Box) and Reference Dimensions (Brackets) with BCT Inspector NX.

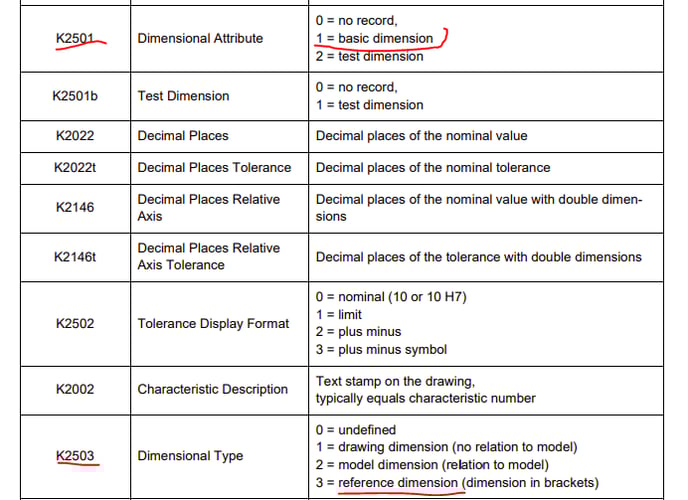

First a screenshot from our config guide ("....\inspector\bct_help\bct_inspector\Configuration_BCT_Inspector_en.pdf").

Here we check the columns where we track the different types of dimensions.


image-Jul-11-2024-07-09-03-1716-AM

K2501 and K2503 are important. The next step is to add this values to the filters in bct_inspector_cfg.xml.


Bellow you see an excerpt from a standard inspector _cfg file. Yours may have slight differences. I did the changes only for dimension type. Not for Radius, Diameter, Angle, Depth and Chamfer!


Filter ID 29 ist the standard in the   <AutoCreate  filter="1-15,18-22,29-34,53" for dimension type. It has 2 relations 35 and 41. That means if ID 29 is called, it will also call 35 and 41.


In ID 35 we check K2501 and I changed the value from 2 to [1-2] and activate value_is_regexp="1".

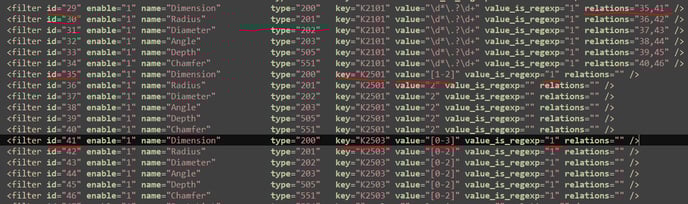

image-Jul-11-2024-07-17-28-2194-AM

​And the same for ID 41. We check K2503 and I increased the range from [0-2] to [0-3]. value_is_regexp="1" is already active in this filter.


If you want to do this for all types, you have to adjust the other IDs under 35 and under 41 in the same way.
